Collaborative Welding Robots
SHRHC5 Collaborative Welding Robot

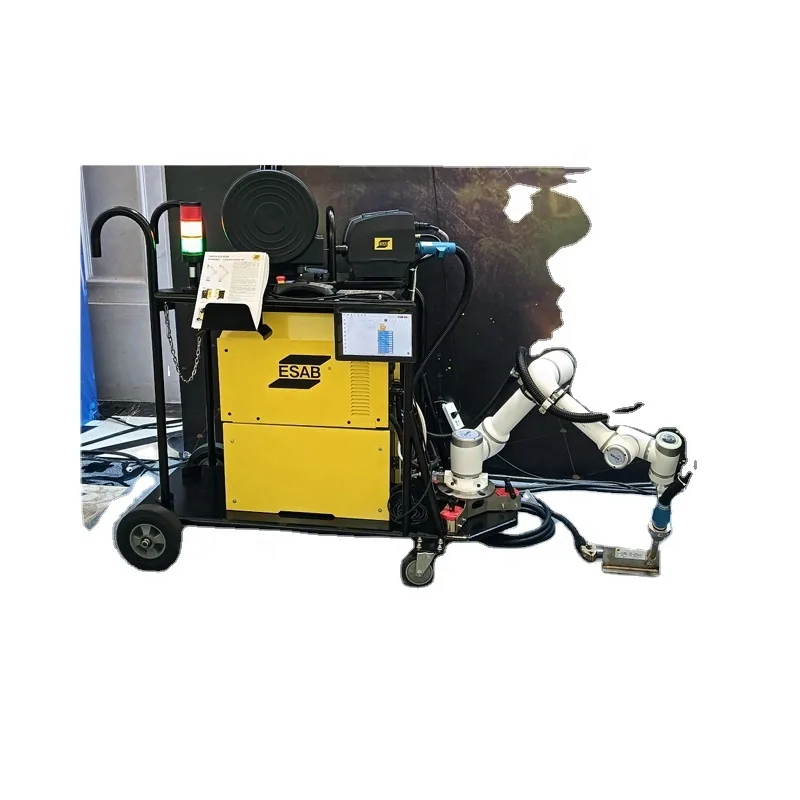

Lightweight collaborative robot that can be deployed on a hand-pushed mobile platform — ideal for flexible welding stations and high-mix, low-volume production.
- Rated payload
- 5 kg
- Weight incl. cable
- 21 kg
- Working radius
- 850 mm
- Repeatability
- ±0.05 mm
- Degrees of freedom
- 6 axes
- Rated power
- 350 W
Reference priceUS$26,500–28,760 / set
MOQ1 set
Reference FOB price. Final price depends on configuration and quantity — request a formal quotation.
- Manufacturer & system integrator
- Customised configurations
- Export via Dalian port
- Installation, training & after-sales
Product introduction
Lightweight collaborative robot that can be deployed on a hand-pushed mobile platform — ideal for flexible welding stations and high-mix, low-volume production.
Technical specifications
| Rated payload | 5 kg |
|---|---|
| Weight incl. cable | 21 kg |
| Working radius | 850 mm |
| Repeatability | ±0.05 mm |
| Degrees of freedom | 6 axes |
| Rated power | 350 W |
| Protection class | IP54 |
| Programming | Graphical programming, hand-guided (drag) teaching |
| Communication | TCP/IP, Modbus TCP, Modbus RTU, Profinet, EtherNet/IP |
| Power supply | 100–240 VAC, 50–60 Hz |
Specifications are based on the manufacturer's published data and may vary by configuration. Please confirm final parameters in the formal quotation.
Core features & technical highlights
- Hand-guided drag teaching and graphical programming
- Mobile cart deployment for fast station changes
- Industrial fieldbus communication options
Applications & industries
- Small metal parts, fixtures, training and education, and assisting manual welding stations
- Space-limited, frequently changing stations requiring fast deployment
Request a quote for this product
Tell us your workpiece material, thickness, process, power supply and quantity. A sales engineer will reply within 24 hours with a configuration and price.
