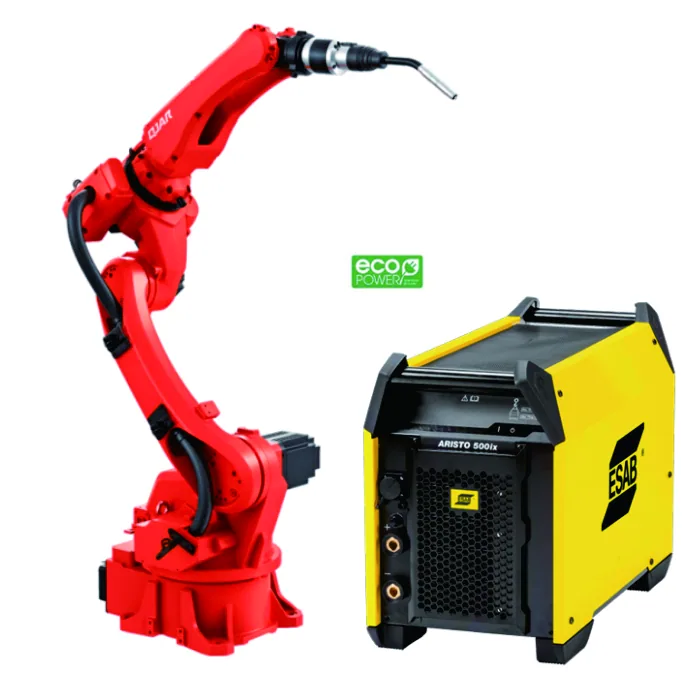

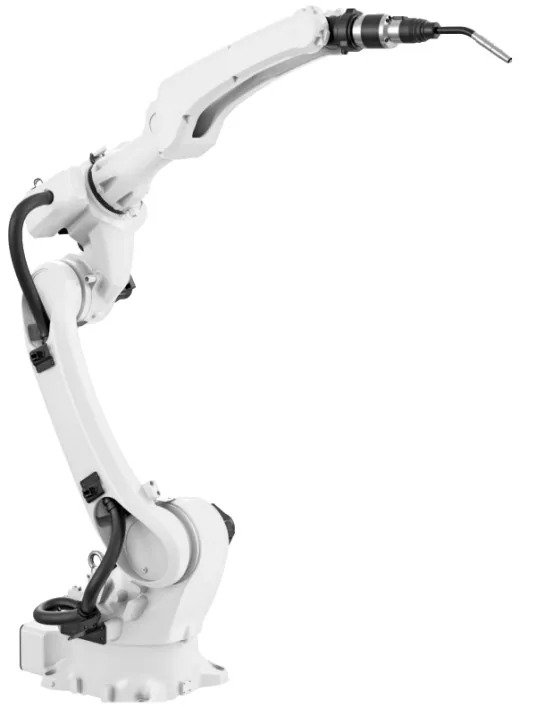

SHRH1400H 6-Axis Arc Welding Robot
Six-axis industrial arc welding robot for standard welding stations, built for reliability, high repeatability and harsh industrial environments.
- Structure / Axes
- Vertical articulated, 6 axes
- Rated payload
- 6 kg
- Repeatability
- ±0.08 mm
- Max. reach
- 1456 mm
- Protection class
- IP54
- Robot body weight
- 150 kg
Reference priceUS$12,000–20,200 / set
MOQ1 set
Reference FOB price. Final price depends on configuration and quantity — request a formal quotation.
- Manufacturer & system integrator
- Customised configurations
- Export via Dalian port
- Installation, training & after-sales
Product introduction
Six-axis industrial arc welding robot for standard welding stations, built for reliability, high repeatability and harsh industrial environments.
Technical specifications
| Structure / Axes | Vertical articulated, 6 axes |
|---|---|
| Rated payload | 6 kg |
| Repeatability | ±0.08 mm |
| Max. reach | 1456 mm |
| Protection class | IP54 |
| Robot body weight | 150 kg |
| Power capacity | 2.6 kVA |
| Controller cabinet | Approx. 600 × 480 × 920 mm, 95 kg |
| Power supply | 3-phase 380 V ±10% |
| Mounting | Floor or ceiling |
Specifications are based on the manufacturer's published data and may vary by configuration. Please confirm final parameters in the formal quotation.
Core features & technical highlights
- Six-axis vertical articulated arm for standard arc welding stations
- ±0.08 mm repeatability for consistent seam quality
- IP54 protection for harsh workshop environments
- Floor or ceiling mounting
Applications & industries
- Arc welding stations for automotive parts, construction machinery structural parts and metal fabrications
- Batch production with fixed seam positions and stable cycle times where consistency must be improved
