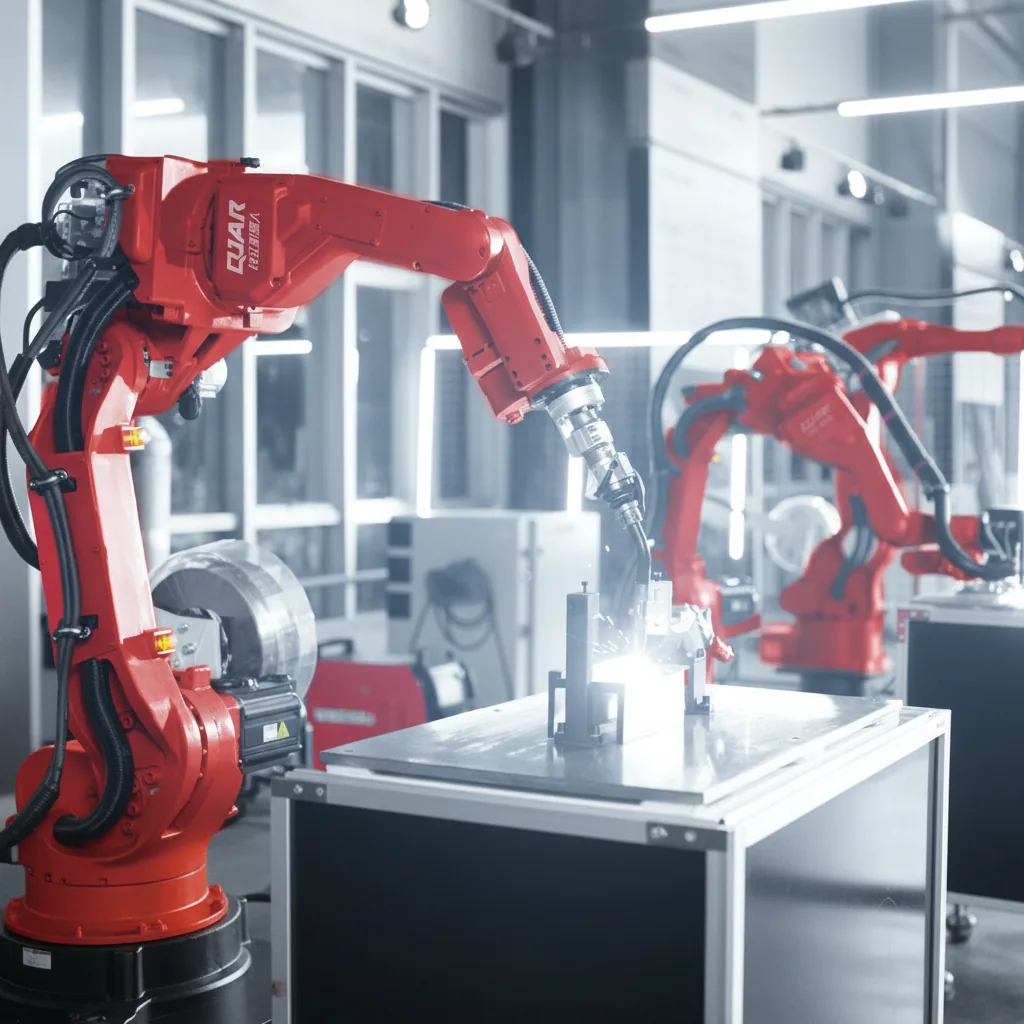

SHRH2000H Long-Reach Arc Welding Robot
Long-reach model of the SHRH series for welding cells with a larger working radius, suitable for bigger workpieces or wide station coverage.
- Structure / Axes
- Vertical articulated, 6 axes
- Rated payload
- 6 kg
- Repeatability
- ±0.08 mm
- Max. reach
- 2014 mm
- Protection class
- IP54
- Robot body weight
- 230 kg
Reference pricePrice on request
- Manufacturer & system integrator
- Customised configurations
- Export via Dalian port
- Installation, training & after-sales
Product introduction
Long-reach model of the SHRH series for welding cells with a larger working radius, suitable for bigger workpieces or wide station coverage.
Technical specifications
| Structure / Axes | Vertical articulated, 6 axes |
|---|---|
| Rated payload | 6 kg |
| Repeatability | ±0.08 mm |
| Max. reach | 2014 mm |
| Protection class | IP54 |
| Robot body weight | 230 kg |
| Power capacity | 3.4 kVA |
| Controller cabinet | Approx. 600 × 480 × 920 mm, 95 kg |
| Power supply | 3-phase 380 V ±10% |
| Mounting | Floor or ceiling |
Specifications are based on the manufacturer's published data and may vary by configuration. Please confirm final parameters in the formal quotation.
Core features & technical highlights
- 2014 mm reach for large working envelopes
- Same 6 kg payload and ±0.08 mm repeatability as SHRH1400H
- Can be combined with positioners, ground tracks or gantries
Applications & industries
- Large structural parts, long seams and multi-station welding
- Working with positioners, ground rails or gantry systems to extend the robot working range
Request a quote for this product
Tell us your workpiece material, thickness, process, power supply and quantity. A sales engineer will reply within 24 hours with a configuration and price.
