SH-3B Gantry CNC Plasma / Flame Cutting Machine

ModelSH-3B
BrandShuanghua
OriginShenyang, China

Gantry CNC cutting machine configurable with plasma or flame for steel plate blanking and multi-size plate processing.

Effective cutting area: 2300 × 6000 mm, 2300 × 8000 mm, 2300 × 10000 mm, 2300 × 12000 mm
Power: Single-phase AC 220 V; approx. 2000 W
Travel speed: 0–10000 mm/min
Running accuracy: 0.2 mm/m
Flame cutting thickness: Piercing 5–60 mm; edge start 60–200 mm

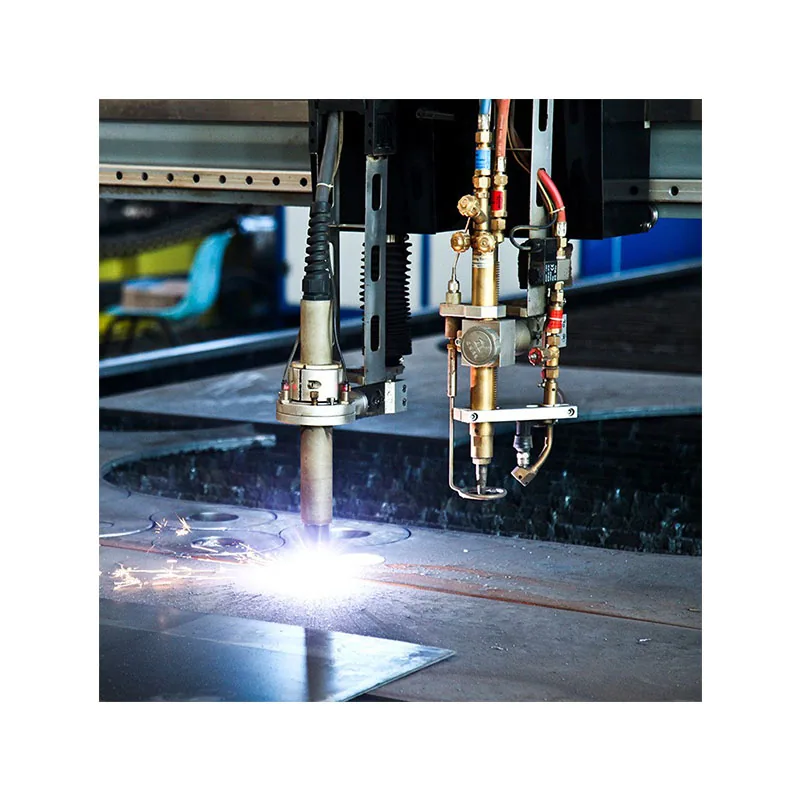

Cutting modes: Plasma, flame, flame + plasma combined

Reference pricePrice on request

Request a Quote

Manufacturer & system integrator
Customised configurations
Export via Dalian port
Installation, training & after-sales

Product introduction

Gantry CNC cutting machine configurable with plasma or flame for steel plate blanking and multi-size plate processing.

Technical specifications

Model / rail	SH-3B; rail gauge 3200 mm; rail length 8000 / 10000 / 12000 / 12000 mm
Effective cutting area	2300 × 6000 mm, 2300 × 8000 mm, 2300 × 10000 mm, 2300 × 12000 mm
Power	Single-phase AC 220 V; approx. 2000 W
Travel speed	0–10000 mm/min
Running accuracy	0.2 mm/m
Flame cutting thickness	Piercing 5–60 mm; edge start 60–200 mm
Cutting modes	Plasma, flame, flame + plasma combined

Specifications are based on the manufacturer's published data and may vary by configuration. Please confirm final parameters in the formal quotation.

Core features & technical highlights

Plasma, flame or combined configuration
Four standard cutting lengths up to 12 m

Applications & industries

Plate blanking for steel structures, machinery manufacturing, construction machinery and general metalworking

Construction Machinery Metal Fabrication Steel Structure
