Hydraulic Cylinder Welding Robot
Industry: Construction Machinery
Robotic welding of hydraulic cylinder barrels, end caps and mounting lugs, with the cylinder rotated by a positioner for circumferential seams.
Typical equipment configuration
- Six-axis arc welding robot (SHRH / QJR / FANUC series)
- Welding power source matched to material and process (ESAB Aristo / Fabricator EM or partner brands)
- Positioner or ground track sized to the workpiece
- Dedicated or flexible welding fixtures
- Safety fencing and cell controls
Each workstation is configured to the customer's workpiece, cycle time and layout. Contact us with your drawings for a tailored proposal.

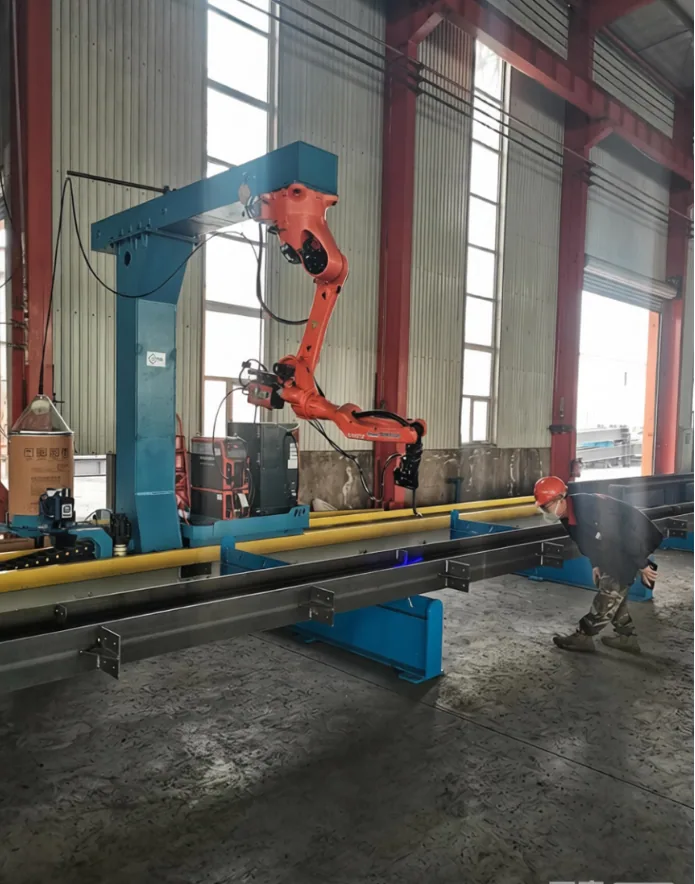

Equipment used in this application
